Ford Kuga Navigation Fault: Complete Guide to Fixing SYNC GPS Issues

Understanding the Ford Kuga Navigation Fault

When the Ford Kuga’s navigation system decides to misbehave, it feels like setting out on a road trip with a broken compass. We’ve all been there—ready to follow the on-screen map, only to see a frozen display, spinning loading rings, or a sarcastically blank GPS signal. In this guide, we dive straight into the core of the issue, exploring causes, fixes, and prevention so we can get back on the road with confidence.

Why Navigation Faults Happen in the Ford Kuga

Modern car tech is a marvel—until it isn’t. The Kuga’s SYNC system is powerful but prone to hiccups.

Common Culprits Behind Navigation Failures

• GPS antenna faults
• Outdated SYNC software or expired map licenses
• Corrupted map data
• Internal SYNC module glitches
• Low battery voltage or wiring issues
• Damaged SD cards (in older models)
• Faulty APIM unit (Accessory Protocol Interface Module)

Which Kuga Models Are Most Affected?

Different years suffer different symptoms:

• 2013–2016 Kuga → SD-card-based maps, common card-reader & map corruption issues.
• 2017–2019 Kuga → SYNC 3 GPS antenna failures.
• 2020+ Kuga → Connectivity-based issues, server lag, occasional APIM lockups.

Recognising the Symptoms Early

It’s helpful to know what signs point to an emerging navigation fault.

Typical SYNC Navigation Fault Symptoms

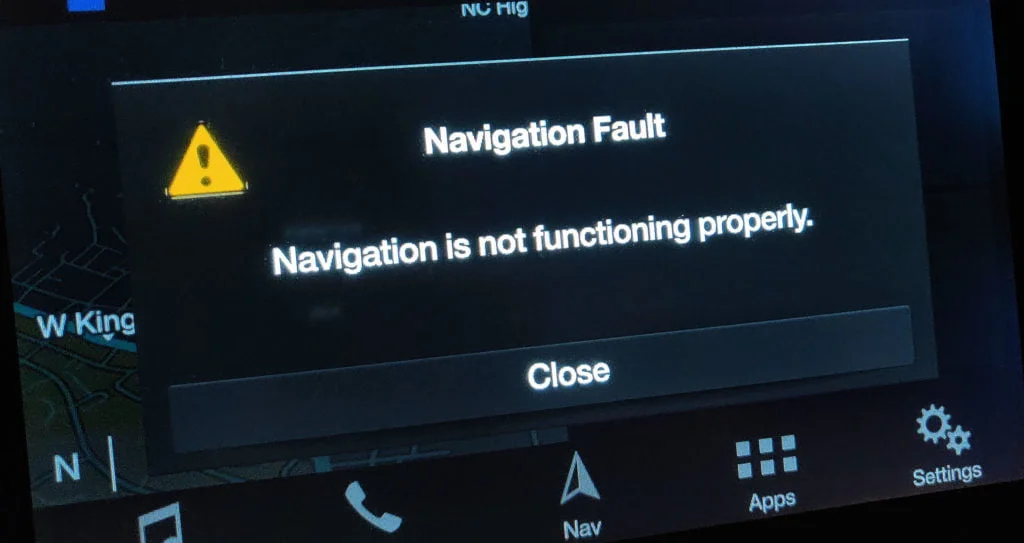

• “Navigation Fault” message appears on screen
• GPS position stuck in one spot
• Vehicle icon drifting or floating off-road
• Map won’t load
• Missing or blank map
• Directions fail to start
• SYNC resets or freezes
• Location accuracy shows wildly incorrect readings

When It’s More Than a Software Error

If the Kuga’s map thinks you’re driving through the middle of the ocean, that’s usually a clear GPS antenna issue—not your driving style.

Diagnosing the Navigation Fault

Let’s break down how we can pinpoint the fault logically rather than guessing.

Step-by-Step Diagnosis

1. Restart SYNC
2. Check for system updates
3. Inspect SD card (if fitted)
4. Verify GPS signal strength
5. Run APIM diagnostics (dealer or advanced tools)
6. Check roof antenna connections
7. Test the car battery’s voltage

Tools That Help With Diagnosis

• FORScan (advanced owners)
• Official SYNC update checker
• OBD2 scanner
• Multimeter
• USB stick for updates
• Replacement SD map card

Resetting the Ford Kuga Navigation System

Before panicking, a simple reset often wakes up the system.

Soft Reset (SYNC 3 & SYNC 4)

• Hold Seek Up + Power button for 10 seconds
• System reboots automatically

Master Reset (Factory Reset)

Navigate to:
Settings → General → Master Reset

Mazda 3 Battery Management System Malfunction: The Complete Troubleshooting & Prevention Guide

This wipes paired phones, saved addresses, and preferences.

Hard Reset (Battery Disconnect)

• Disconnect battery for 10–15 minutes
• Reconnect
• Allow SYNC to reboot and rebuild GPS lock

Updating SYNC and Map Software

Outdated software is one of the top causes of navigation errors.

How to Update Your SYNC System

• Visit Ford’s official SYNC update site
• Enter VIN
• Download update to USB
• Install via car’s USB port
• Wait for reboot

Ensuring Map Data Is Current

Maps need regular updates because new roads appear, old ones vanish, and speed limits change.

On SD-Card Models

• Replace SD card if outdated or corrupted
• Ensure it matches region and version

On SYNC 3+

• Update maps via USB
• Use Wi-Fi for incremental updates (some models)

GPS Antenna Problems: A Major Root Cause

If your Kuga thinks you’ve drifted into another continent, this is where we should look.

How the GPS Antenna Fails

• Water ingress via roof
• Corrosion on connectors
• Internal module failure
• Damaged coaxial cable

Symptoms of a Bad GPS Antenna

• Zero or weak GPS bars
• Navigation Fault appears immediately on startup
• Vehicle location drifts or freezes
• Long time acquiring satellites

Replacing the GPS Antenna

Depending on model, the antenna is:

• Integrated into the shark-fin roof unit
• Connected to APIM under dashboard

Expect:

• Labour 1–2 hours
• Part cost £40–£120

APIM Module Faults: When the Brain Fails

The APIM is the command centre for SYNC.

Signs of a Failing APIM

• Frequent reboots
• Frozen touchscreen
• Navigation unavailable
• Bluetooth & voice control issues
• Black screen on cold mornings

APIM Replacement Costs

• Used unit: £120–£250
• New unit: £400–£700
• Labour: £100–£200
• Programming required

Corrupted Navigation Data

Sometimes SYNC is simply confused. We’ve all had those days.

Mazda 3 Battery Management System Malfunction: The Complete Troubleshooting & Prevention Guide

Common Mazda 3 Problems: The Complete Guide to the Most Frequent Issues

Why Data Becomes Corrupted

• Interrupted updates
• Bad SD card
• Failing storage chip
• Low voltage events
• Sudden shutdown mid-install

How to Fix Map Corruption

• Re-install map package
• Replace SD card
• Update system fully
• Perform a master reset

Navigation Fault After Battery Replacement

A classic problem we see more than expected.

Why Battery Changes Trigger Navigation Errors

• System loses stored satellite data
• Voltage drop interrupts internal processes
• APIM boots into recovery mode

How to Restore GPS After Battery Service

• Perform a soft reset
• Let car idle for 10 minutes to reacquire satellites
• Update SYNC
• Check battery health if issues persist

Interference & Signal Issues

The Kuga relies on continuous satellite access.

Common Sources of Interference

• Aftermarket dash cams
• Windshield tint with metal layers
• Phone mounts near antenna
• Faulty USB adapters
• Roof bar clamps pressing on antenna housing

How to Reduce Interference

• Reposition devices
• Remove metallic adhesive tint
• Isolate wiring
• Inspect roof fittings

Preventing Navigation Faults in the Future

We can avoid many headaches with simple habits.

Maintenance Tips

• Keep SYNC software updated
• Replace aging SD cards
• Avoid cheap electronics plugged into USB ports
• Protect roof antenna from water exposure
• Use stable voltage when updating maps

When to Visit a Ford Dealer

Although many fixes are DIY-friendly, some issues deserve professional hands.

Dealer-Recommended Situations

• APIM module failure
• Complex wiring faults
• Persistent GPS dropouts
• Software updates that require dealer tools
• Warranty-related repairs

Cost Summary Table for Navigation Fault Repairs

Final Thoughts

A Ford Kuga navigation fault can feel like driving blindfolded through a maze, but once we understand the core issues—GPS antennas, software glitches, map corruption, APIM faults—the solution becomes far less intimidating. With the right steps, these issues are almost always fixable, often without dealership-level tools. Whether we’re updating SYNC, replacing a failing component, or simply resetting the system, the goal is clear: get back to smooth, accurate navigation that leads us where we want to go.

FAQs

1. Why does my Ford Kuga say “Navigation Fault”?

Because SYNC can’t load maps or access GPS due to software errors, corrupted data, or hardware faults.

2. How do I fix a frozen navigation screen?

Perform a soft reset, update software, or check the APIM for deeper issues.

3. Does a weak battery affect navigation?

Yes—low voltage can corrupt data and reduce GPS lock reliability.

Mazda 3 Battery Management System Malfunction: The Complete Troubleshooting & Prevention Guide

Common Mazda 3 Problems: The Complete Guide to the Most Frequent Issues

Mazda 3 i-STOP Not Working: The Complete Troubleshooting Guide

4. What’s the most common cause of incorrect location tracking?

A failing GPS antenna or weak signal reception.

5. Can I replace the APIM myself?

Technically yes, but it requires coding and is best handled by professionals.

If you want to know other articles similar to Ford Kuga Navigation Fault: Complete Guide to Fixing SYNC GPS Issues you can visit the category Common Problems.
