How to Replace the Heater Core on a Nissan Xterra (Gen 2: 2005–2015)

If you own a second-generation Nissan Xterra (2005–2015) and need to replace the heater core, this detailed guide will walk you through the process step-by-step. We’ll cover practical tips, common pitfalls, and insights based on real-world experience so you can take on the job with confidence.

Understanding the Heater Core Problem

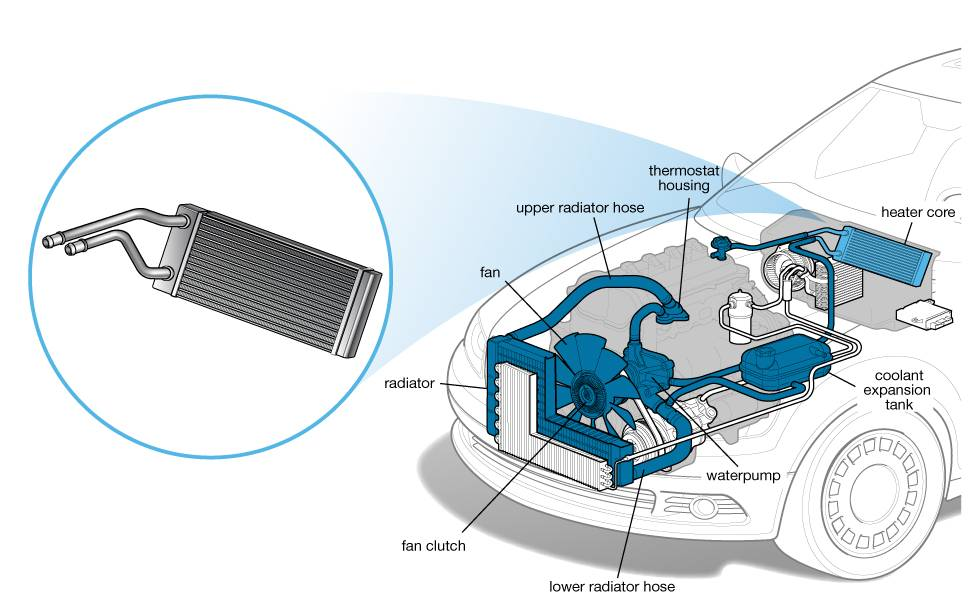

The heater core functions like a small radiator located behind the dashboard. Hot coolant flows through it, and when you turn on the heater, air passes over the core to warm the cabin.
Over time, it can become clogged or start leaking—causing a sweet coolant smell, fogged windows, or even overheating if the cooling system fails.

According to repair estimates, replacing a heater core in an Xterra typically costs between $1,242 and $1,856 (parts and labor included). The good news? You can save a lot by doing it yourself—with patience, proper tools, and guidance.

Preparing for the Job

Before starting the teardown:

• Get the correct replacement part for your model year (2005–2015). Some parts are shared with the Nissan Frontier and Pathfinder.
• Gather tools: socket set, screwdrivers, pliers, flashlights, and even a phone camera to check hidden clips.
• Work in a spacious, well-lit area, ideally with easy access to both the cabin and engine bay.
• Disconnect the battery before touching electrical or airbag components.
• Drain the cooling system to prevent spills.

Once everything is ready, you can begin removing the dashboard and HVAC components.

Nissan Xterra Power Steering Fluid Change: Complete Step-by-Step Guide (2005–2015)

Step-by-Step Heater Core Replacement

1. Dashboard Disassembly

1. Remove trim pieces, bezels, the center console, and radio housing. Be careful—these plastic parts are brittle and may crack.
2. Detach the dashboard reinforcement bar (dash bar). It may have retaining clips or adjusters that let you slide it out with firm pressure.
3. Disconnect the wiring harness that runs from the passenger side to the driver’s side, but you don’t need to remove the steering column or U-joint if it can hang freely.

Many online videos make the job seem easier than it actually is—the tight space near the firewall is where most of the difficulty lies.

2. Removing the HVAC Box from the Firewall

Behind the dashboard sits the HVAC box (heating, ventilation, and air conditioning). To access the heater core:

• Unscrew the bolts securing the box to the firewall.
• Pull the box away enough to expose the two heater core lines passing through the firewall.
• Detach any loops or clips that secure the lines in place.

The tricky part: these coolant tubes pass through a fixed housing—you can’t pull the heater core out without fully detaching the HVAC box.

3. Extracting the Old Heater Core

Once the box is loose:

• Carefully disconnect the heater core tubes.
• Slide out the old heater core—it may be stuck due to corrosion or debris buildup.
• Inspect and clean the interior of the box before installing the new one.

Some clips may be difficult to reach. If needed, cut and replace them or use zip ties to secure everything back in its factory position.

Nissan Xterra Power Steering Fluid Change: Complete Step-by-Step Guide (2005–2015)

Nissan Xterra Engine Replacement Cost: Complete 2025 Guide

4. Installing the New Heater Core

Installation is essentially the reverse of removal:

1. Align the HVAC box locator pins with the holes in the firewall.
2. Feed the new heater core lines through the firewall from the engine bay side.
3. Reattach all clips, screws, and harnesses in order.
4. Reinstall all interior trims and components.

Make sure the lines are properly centered—if they’re misaligned, the hoses may twist or kink when reconnected. You can visually check alignment from the engine bay side to ensure everything fits smoothly.

Tips, Warnings, and Recommendations

• Many DIYers say the job “isn’t too bad,” but it’s actually very time-consuming and requires attention to detail for hidden clips and connections.
• Plastic trim and dash pieces are fragile—order a few replacement clips before starting.
• Don’t forget to bleed the cooling system afterward to remove trapped air.
• Take this opportunity to replace the cabin air filter and inspect HVAC seals.
• If the HVAC box doesn’t align easily during reinstallation, check the locating pins before forcing it.

Most people report that the full process takes 5–8 hours, depending on experience and whether parts break during removal.

DIY vs. Professional Replacement: Cost and Value

Benefits of Doing It Yourself

• Save hundreds of dollars in labor costs.
• Learn valuable mechanical skills.
• Control the quality of parts and workmanship.

Drawbacks and Challenges

• Mistakes can cause leaks or misalignment, forcing a redo.
• Plastic breakage is common.
• The job is long and physically demanding—expect to spend a full day.

Professional Shop Costs

Professional heater core replacement typically runs between $1,200 and $1,800, mainly due to labor. Doing it yourself limits costs to parts and any broken clips or bezels.

Final Thoughts

Replacing the heater core in a 2005–2015 Nissan Xterra is challenging but completely doable with patience, preparation, and the right tools. Proper organization, documentation, and step-by-step care make the task manageable. You’ll save a significant amount of money while gaining deeper knowledge of your vehicle’s interior systems.
