MG4 How to Charge: The Complete, Human-Written Guide for New and Experienced EV Owners

Charging the MG4 can feel like a maze the first time—different plugs, different speeds, different costs. But once we break it down together, the whole process becomes surprisingly intuitive. In this guide, we walk through every way to charge the MG4, from slow overnight home charging to rapid motorway top-ups that save the day when the battery dips into the single digits.

We keep it conversational, we keep it simple, and we explain every step as if we were standing next to you at the charger, pointing things out. Let’s plug in.

Understanding How MG4 Charging Works

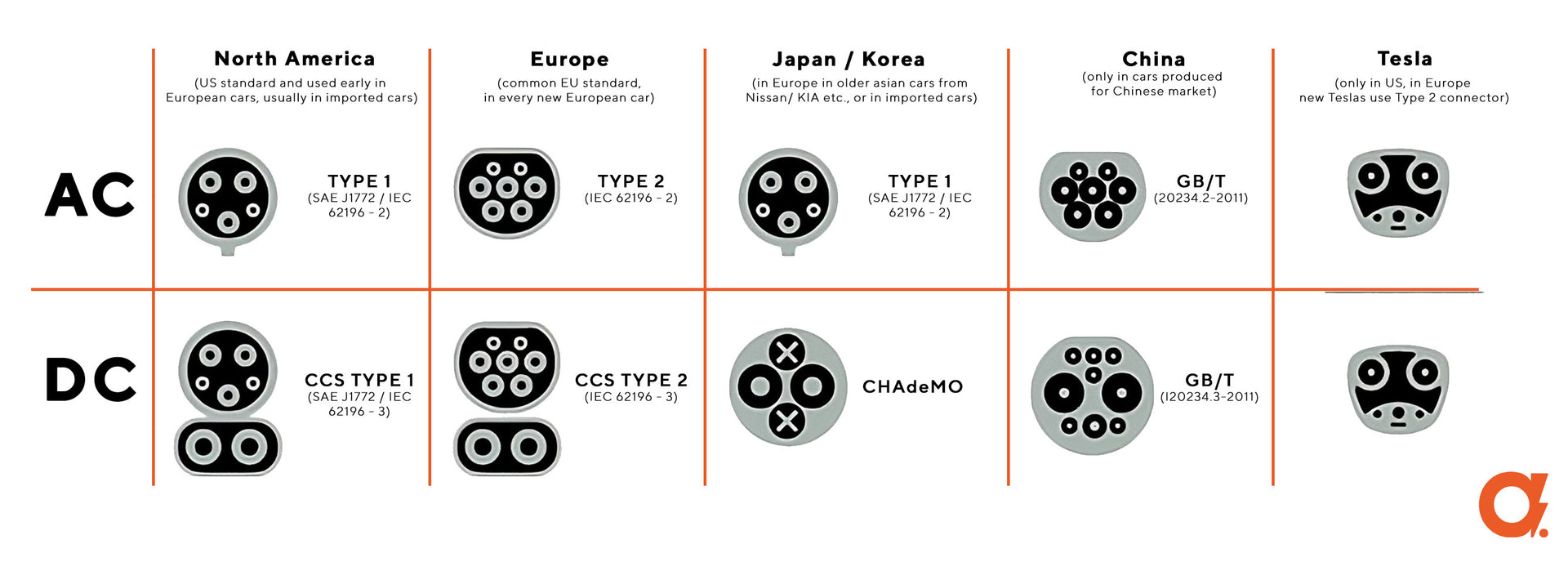

The Two Ports You Need to Know

The MG4 uses a Type 2 port for AC charging and a CCS port for DC rapid charging. Both are located at the front centre of the car, behind the charging flap.

Why Two Charging Systems?

Because each serves a different purpose:

• Type 2 (AC) – Slower but perfect for home or workplace charging.
• CCS (DC) – Fast chargers designed for motorway routes and long trips.

Think of it like filling a water bottle—sometimes we use a slow kitchen tap, other times we blast it under a high-pressure tap at a service station. Same end result, different speeds.

Different Ways to Charge the MG4

Home Charging (The Most Common Method)

Charging at home is the MG4’s sweet spot. It’s cheap, safe, reliable, and always ready the next morning.

Using a Home Wallbox

Most MG4 owners use a 7.4kW wallbox, which typically adds around:

• 25–30 miles per hour
• 0–100% in roughly 8–9 hours (depending on the battery)

Using a Three-Pin Plug

Yes, you can use the included emergency 3-pin charger—but it’s slow:

• 2.3kW charging speed
• 0–100% in around 24–28 hours

We recommend keeping this as a backup method only.

How to Charge the MG4 at Home (Step-by-Step)

1. Park and Switch Off

Make sure the vehicle is stationary, parked, and locked if needed—though the MG4 will still charge while unlocked.

2. Open the Charging Port

Press the flap at the front and it lifts open. No extra buttons or tricks.

3. Plug in the Charger

• For AC, plug in the Type 2 connector.
• Ensure it’s fully clicked into place.

4. Check the Charging Indicator

The MG4 will light up blue (charging) and will show your estimated time to full on-screen.

5. Stop Charging

To end the session:

• Unlock the car
• Press the connector button
• Remove the cable
• Close the flap

Simple.

Charging the MG4 at Public AC Chargers

Public AC chargers are dotted around car parks, hotels, shopping centres, and supermarkets.

Typical Speeds

Most public AC charge points offer:

• 7kW
• 11kW
• 22kW

However—the MG4's onboard charger is limited to 6.6kW–11kW depending on model, so even a faster post won’t charge the MG4 beyond its limit.

Peugeot 2008 Oil Type, Oil Capacity & Complete Maintenance Guide (All Engines & Years)

How to Use Them

1. Park and check the screen or sign for instructions.
2. Scan an RFID card or app.
3. Plug your Type 2 cable into both ends.
4. Wait for confirmation.
5. Unplug when finished.

DC Rapid Charging (Motorway and Long-Distance)

This is where the MG4 shines, especially the Extended Range model.

Typical DC Charging Speeds

• Standard Range: Up to 117kW
• Long Range / Extended: Up to 135kW

What That Means in Practice

A rapid charger will take your MG4:

• 10–80% in about 26–35 minutes
• Perfect for long trips
• Much faster than AC charging

Rapid charging uses the CCS connector (the two-pin portion under the Type 2 socket).

How to DC Rapid Charge the MG4 (Step-by-Step)

1. Position the Car Correctly

Rapid chargers often have short, thick cables—so align your MG4 carefully.

2. Select Your Charger

Tap the screen or app on the charger and select CCS.

3. Plug the CCS Connector In

It requires a firm push because it’s heavier.

4. The Charger Will Take Over

Most DC chargers:

• Authenticate
• Lock the connector
• Start delivering power

5. Keep an Eye on the MG4 Display

You’ll see:

• Current charging speed
• Estimated time to 80%
• Battery temperature changes

6. Stop Charging When Ready

We recommend stopping at 80% on rapid chargers.
Charging past 80% is slower and less cost-effective.

Using Apps to Charge the MG4

Apps That Make Charging Easier

• Zap-Map
• Pod Point
• BP Pulse
• Shell Recharge
• Gridserve
• Tesla Supercharger app (where MG4 access is enabled)

Most apps allow you to:

• Find chargers
• See live availability
• Track prices
• Initiate charging sessions
• Plan routes

Charging Times for the MG4

Quick Overview

These numbers vary depending on temperature and battery size.

Best Charging Practices for MG4 Battery Health

Don’t Rapid Charge Every Day

It’s perfectly safe occasionally, but daily use can stress the battery.

Aim for 20–80% for Daily Use

MG designed the MG4 battery to thrive in this range.

Keep the Battery Warm in Winter

Charging is slower when cold—preconditioning helps dramatically.

Use Timed Charging at Home

Charging overnight on cheaper energy tariffs is ideal.

Common Charging Problems and How to Fix Them

The MG4 Won’t Start Charging

Try:

• Unplugging and re-plugging the connector
• Checking the charger screen for errors
• Unlocking the car (some chargers won’t release until unlocked)
• Trying a different charger

Slow Charging Speed

Usually caused by:

Peugeot 2008 Oil Type, Oil Capacity & Complete Maintenance Guide (All Engines & Years)

Peugeot 2008 Tyre Pressure Reset – Complete Guide for Every Model Year

• Cold battery
• Hot battery
• Charger limitation
• Shared charger load

Charger Won’t Release the Cable

On DC chargers the connector remains locked until:

• You stop the charge on the charger screen or app
• You press unlock on the MG4

How Much Does Charging the MG4 Cost?

Home Charging Costs

At a typical UK electricity rate:

• About £4–£7 for a full charge (night tariffs can be even cheaper)

Public AC Charging

Usually:

• £0.25–£0.45 per kWh

DC Rapid Charging

Often:

• £0.55–£0.85 per kWh

Plan ahead and you’ll save a lot.

MG4 Charging Tips for Long Trips

1. Charge to 100% Before Leaving

For long journeys, this gives you maximum range.

2. Use Rapid Chargers Only When Needed

Jump from 10% to 60–80% quickly.

3. Avoid Sitting at a Charger Past 80%

Slower, more expensive, and unnecessary.

4. Always Have Multiple Backup Chargers

Apps can show live availability, but always have Plan B and C.

Environmental Impact of Charging the MG4

Charging from home—especially from solar—dramatically reduces emissions.

Using rapid chargers built on renewable energy (such as Gridserve) makes your MG4 one of the cleanest EV journeys available right now.

Closing Thoughts

Charging the MG4 isn’t complicated—it's simply new territory. Once we understand the two ports, the charging speeds, and how AC and DC work, it becomes second nature. Whether we're home charging overnight or grabbing a fast top-up at a motorway service station, the MG4 gives us flexibility, reliability, and freedom.

You’re now fully equipped to charge your MG4 with confidence, clarity, and the kind of charging strategy that maximises battery life and minimises cost.

FAQs

1. Can the MG4 use Tesla Superchargers?

Yes—MG4 can use many Tesla Superchargers that support CCS.

2. Does the MG4 come with a home charger cable?

Yes, it includes a 3-pin emergency charger and sometimes a Type 2 cable depending on market.

3. Should I charge the MG4 to 100% daily?

Not unless you need the full range. 20–80% is ideal.

4. Can the MG4 charge while locked?

Yes, the cable remains locked securely during charging.

Peugeot 2008 Oil Type, Oil Capacity & Complete Maintenance Guide (All Engines & Years)

Peugeot 2008 Tyre Pressure Reset – Complete Guide for Every Model Year

Peugeot 2008 Wet Belt Replacement Cost: The Complete 2025 Guide

5. Does cold weather affect MG4 charging?

Yes—charging may slow down when the battery is cold. Preconditioning helps.
